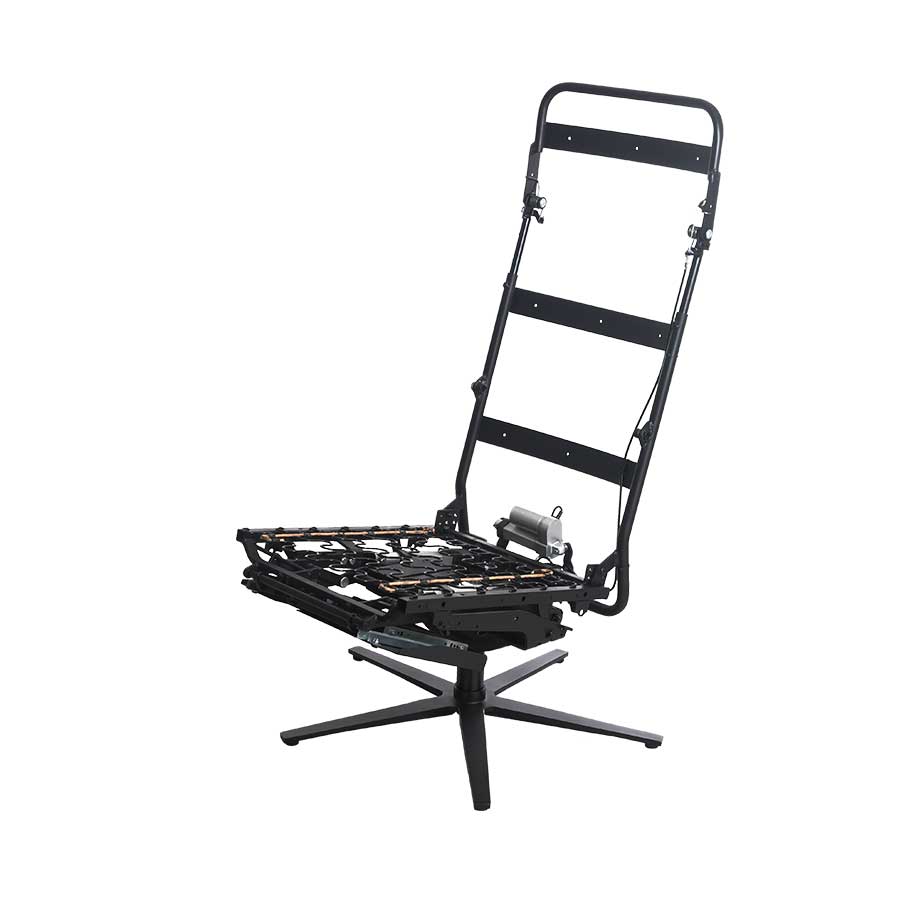

Armchair System RS 70/75 Proxy

Complete relax system with stepless, separate adjustment of leg rest and ba Back and leg rest can be adjusted separately

Functions

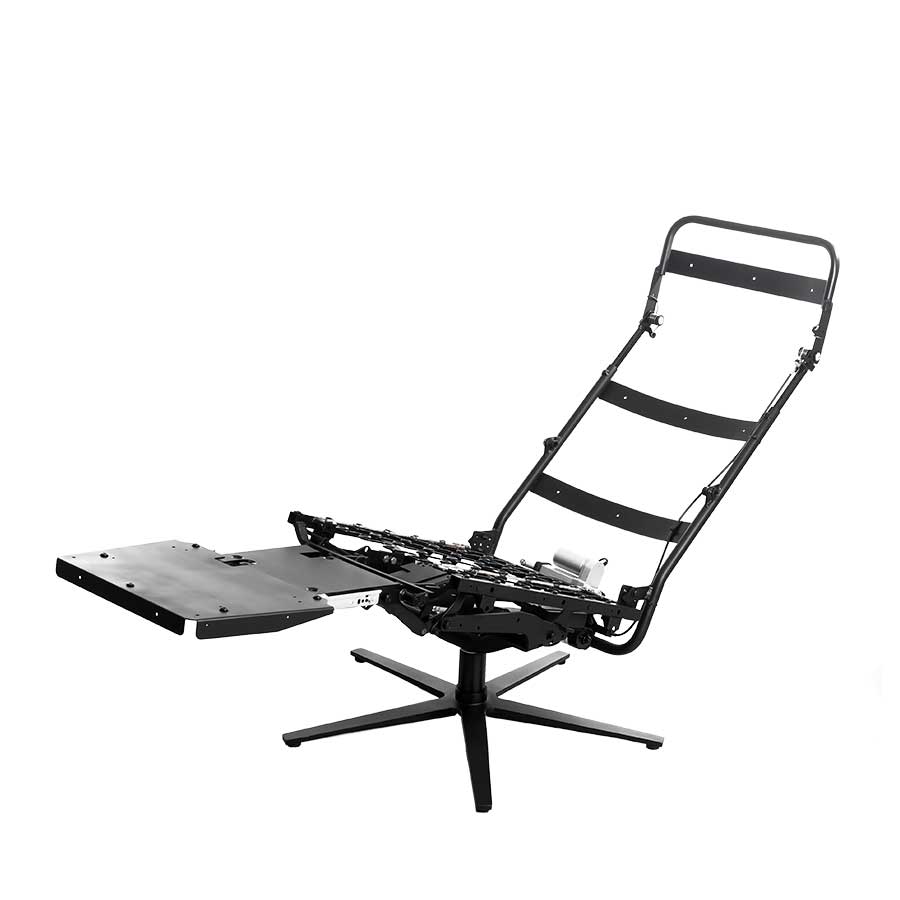

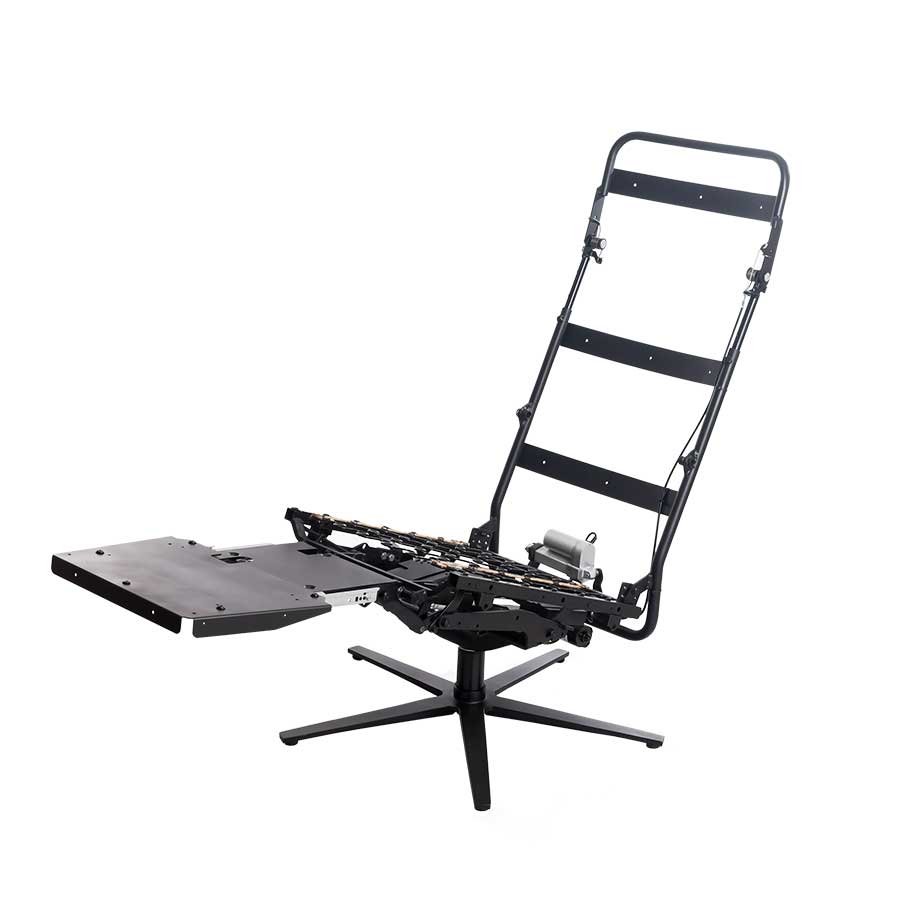

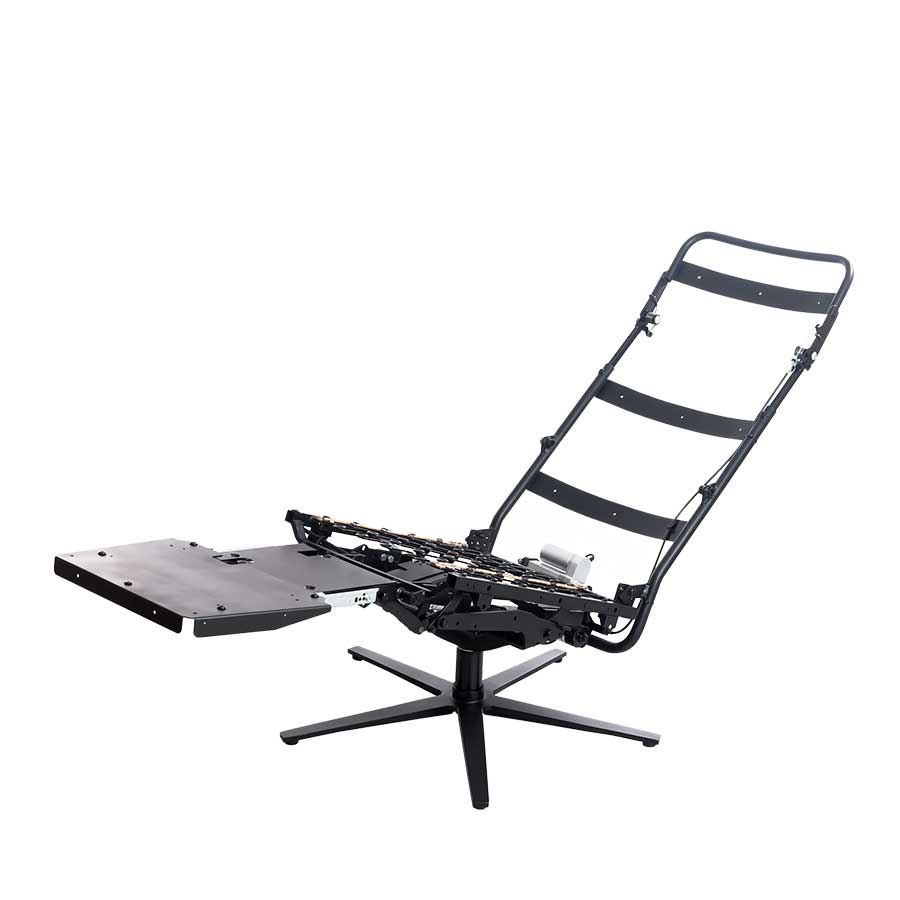

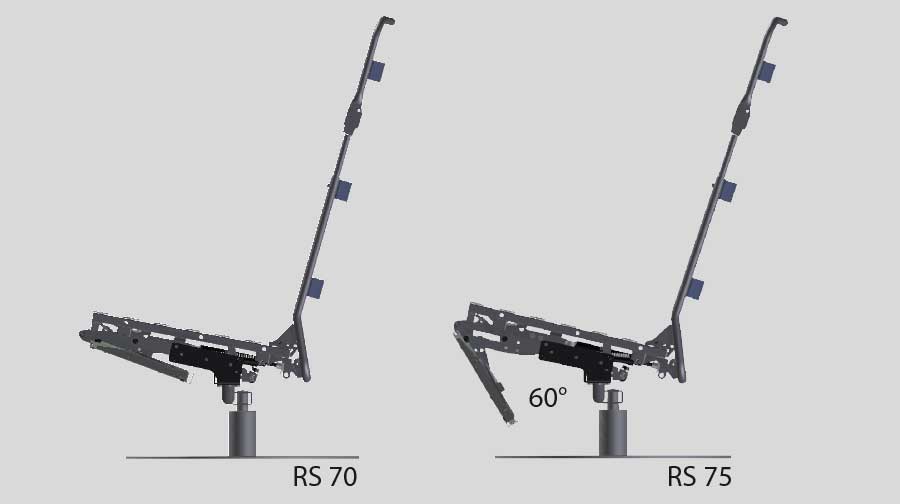

Folding leg rest under the seat or at a 60 ° angle
Headrest continuously adjustable by motor, alternatively manually with ratchet gears

Variants

Three back heights, three seat depths
Suitable for narrow seating positions and conical seat shapes
Center parts cylindrical or conical with different heights
Free design options for side parts and armrests
Fixed, open and co-moving armrests
Die-cast – star base, plate feet (ﬂat and lens plates) and other bases with different surfaces: powder-coated / RAL colours, brushed stainless steel
Manual release via hand lever, loop release or button
Motorized via built-in button or hand switch with digital control for mains or battery operation

Technology

All pivot points are wear-resistant, plastic-mounted
Powder coated / primed steel tube and sheet steel
Wavy curved springs, mounted in the seat frame
