The joints supplied by confer originate from the collaboration with the company KOYO, the leading Japanese joint manufacturer. Only joints are used that meet confer‘s high demands regarding resilience and high-tech functions. The fi ne rasterization of the adjustment steps particularly meets the requirements for convenience.

Stepless upholstry joint with integrated overload protection GL 70-000100

Technology

  • Closed design for functional safety
  • Start position 90°
  • Final position 165°
  • Adjustment range 75°
  • Release area 12°
  • Overload protection 75 Nm
  • Noiseless
  • Stepless adjustment

Application

  • Armrests, mountable vertically

Variants

  • Also available with one or two angles
  • Other variations of request

Stepless upholstry joint with retaining spring GL 70-200100

Technology

  • Closed design for functional safety
  • Start position 90°
  • Final position 165°
  • Adjustment range 75°
  • Release area 12°
  • Overload protection 75 Nm
  • Noiseless
  • Stepless adjustment
  • with retaining spring

Application

  • Armrests, mountable vertically

Variants

  • Also available with one or two angles
  • Other variations of request

Stepless upholstry joint for headrest GL 70-300000

Technology

  • Closed design for functional safety
  • Start position 90°
  • Final position 180°
  • Adjustment range 90°
  • Release area 12°
  • Overload protection from 75 Nm
  • Noiseless
  • Stepless adjustment

Application

  • Headrest with lever, mountable vertically

Variants

  • Also available with one or two angles
  • Other variations of request

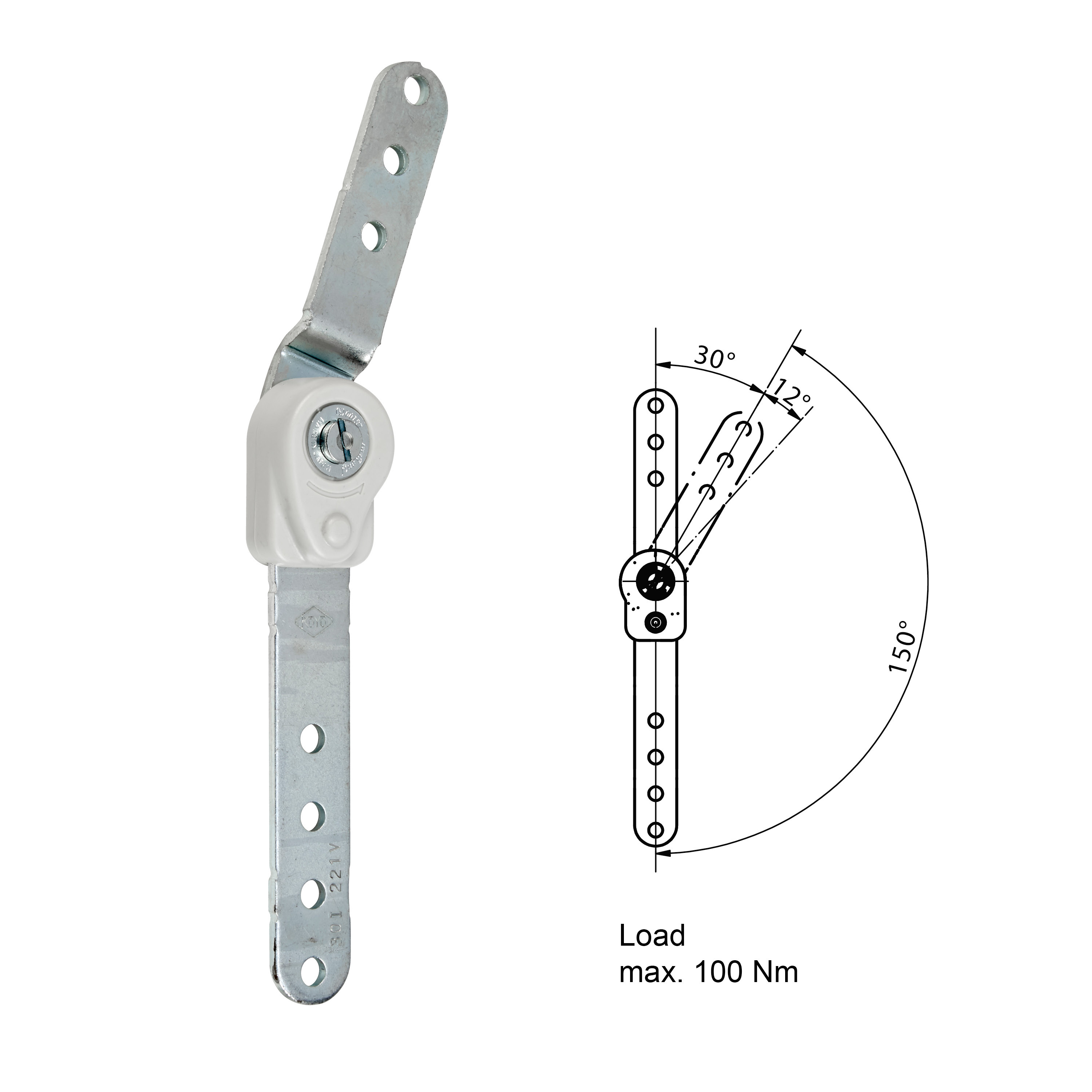

Joint GL 10-100309 with retaining spring

Technology

  • Encapsulated snap-in housing
  • Start position 180°
  • Final position 150°
  • Adjustment range 30°
  • Release area 12°
  • Very quiet click noises
  • Galvanized surface
  • partially with variable starting position
  • High load capacity
  • Stress test > 50.000 cycles
  • LGA approved

Application

  • Headrests
  • Armrests
  • Can be installed horizontally and vertically

Joint GL 50-450368 heavy duty

Technology

  • Encapsulated snap-in housing
  • Start position 120°
  • Final position 162°
  • Adjustment range 42°
  • Release area 18°
  • Very quiet click noises
  • Galvanized surface
  • partially with variable starting position
  • Hole pattern according to the usual standard
  • High load capacity
  • Stress test > 50.000 cycles
  • LGA approved

Variants

  • Special solutions possible

Application

  • Armchair / sofa back adjustment
  • Armrests
  • Can be installed horizontally and vertically
