The joints supplied by confer originate from the collaboration with the company KOYO, the leading Japanese joint manufacturer. Only joints are used that meet confer‘s high demands regarding resilience and high-tech functions. The fi ne rasterization of the adjustment steps particularly meets the requirements for convenience.

Ratchet gear 10/50

Technology

  • Encapsulated snap-in housing
  • Fine grid in 2° steps
  • Different grid areas
  • Very quiet click noises
  • Stable grid position even under load
  • High load capacity > 200 Nm
  • Stress test > 50,000
  • partially with variable starting position
  • Galvanized surface
  • Hole pattern according to the usual standard
  • LGA approved

Application

  • Headrests
  • Armrests
  • Can be installed horizontally and vertically

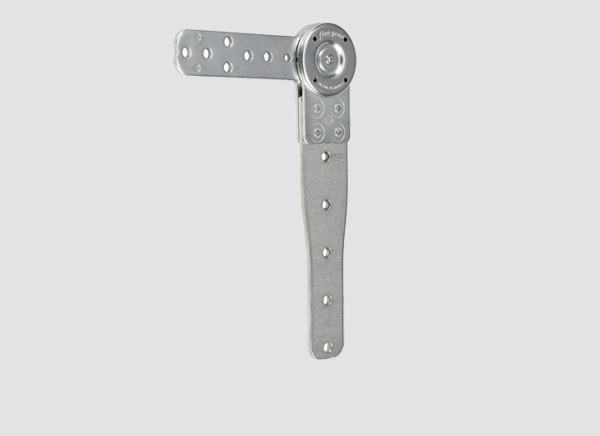

Ratchet Gear GL 10 with return spring

Technology

  • Encapsulated snap-in housing
  • 90° adjustment in 2° steps
  • Reset 18° via return spring
  • Raster noise very quiet
  • Galvanized surface
  • partially with variable starting position
  • Hole pattern according to the usual standard
  • High resilience
  • Stress test > 50,000 cycles
  • LGA approved

Application

  • Headrests
  • Armrests
  • Can be installed horizontally and vertically

Ratchet gear GL 10-300, GL 10-450 for heavy loads

Technology

  • Encapsulated snap-in housing
  • Adjustment 90° in 2° / 6°
  • Reset 18°
  • Raster noise very quiet
  • Galvanized surface
  • Patially with variable starting position
  • Hole pattern according to the usual standard
  • High resilience
  • Stress test > 50,000 cycles
  • LGA approved

Variants

  • Special solutions possible

Application

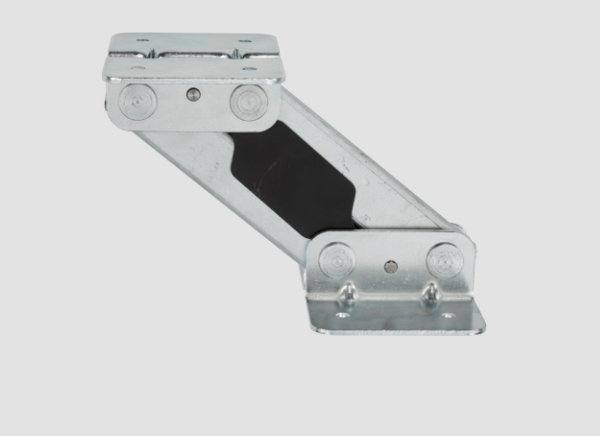

  • Armchair / sofa back adjustment
  • Armrests
  • Can be installed horizontally and vertically
